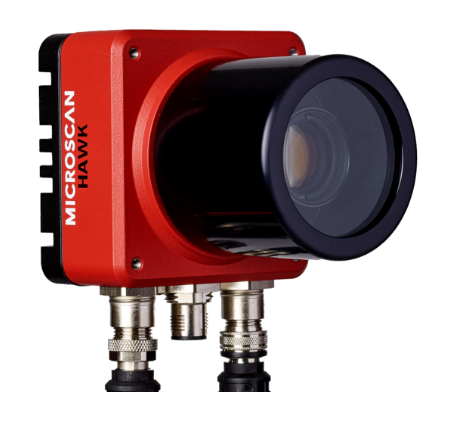

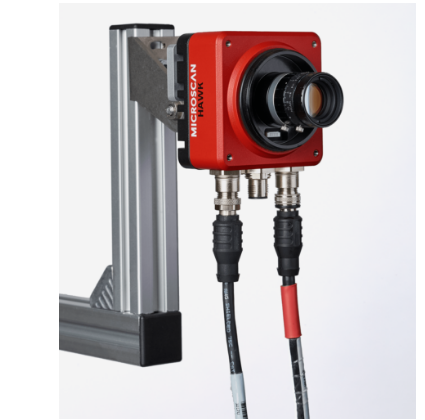

邁思肯Microscan HAWK MV-4000 智能相機
邁思肯Microscan HAWK MV-4000 智能相機
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • HAWK MV-4000堅固的外殼內裝有令人驚嘆的處理能力和優異的靈活性。 這款智能相機采用FPGA，將上一代的處理能力提高了數倍，實現了實時觸發響應。擁有領先的算法，HAWK MV-4000可以成為各行業實現代碼閱讀，代碼驗證，檢查，引導定位，測量或各種組合功能的理想工具。

    HAWK MV-4000的以圖像為中心的用戶界面和拖放式編程使設置變得簡單。 普通的操作員或技術人員會喜歡直觀的AutoVISION用戶界面（UI），可以使用讀取，驗證和視覺工具隨時讀取。機器視覺方面的專家將可以訪問另一個名為FrontRunner的界面，以獲得HAWK MV-4000的全部潛力。

    擁有幾乎達到基于PC系統速度的處理能力，這個智能相機可以真正實現以一當十。 IVision的工程師們把它稱為基于PC的相機和市場上普通的智能相機之間的“黃金中心”。 使用HAWK MV-4000，不需要外部處理即可達到每分鐘4,000至14,000個零件的檢查率。



    邁思肯Microscan HAWK MV-4000 智能相機型號表
    Part NumberDescription
    8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
    8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
    8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
    8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
    1.3 MP Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
    8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
    8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
    8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
    2.0 MP Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
    8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
    8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
    8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
    5.0 MP Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
    8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
    8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
    8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
    0.3 MP Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
    8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
    8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
    8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
    1.3 MP Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
    8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
    8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
    8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
    2.0 MP Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
    8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
    8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
    8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
    5.0 MP Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
    8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
    8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
    8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




    HAWK 4000 LENSES AND LENS CAPS
    Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
    98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
    98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
    98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
    98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
    98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
    98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
    High Resolution for 2/3" Sensors - (Gauging, Verification)
    98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
    98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
    98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
    98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
    98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
    98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
    High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
    98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
    98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
    98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
    98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
    C-Mount Liquid Lens
    98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
    98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
    Lens Accessories
    98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
    98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




    HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
    HAWK 4000 X-CODE Ethernet Port Cables
    61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
    61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
    61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
    HAWK 4000 VGA/USB Port Connector Cables
    61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
    61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
    HAWK 4000 Digital IO Port Connector Cables
    61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
    61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
    QX-1 Interface Cables and Accessories
    61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
    61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
    98-000103-02 QX-1 INTERFACE DEVICE
    99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
    99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
    20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    SMART LIGHT CONTROL CABLES
    61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
    61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
    61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
    61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
    61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
    61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
    Power Supply
    97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




    HAWK 4000 AND SMART LIGHT MOUNTS
    Standard Mounts
    TBDUNIVERSAL MOUNT, HAWK 4000
    98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
    Smart Light/HAWK 4000 Mounting Kits
    98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
    98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
    98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
    98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
    98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




    LICENSING
    HAWK 4000 License Upgrades
    LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
    LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
    LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
    LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
    LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




    Camera Kits - with License, Lens, IP Cover and Mount
    0.3 MP, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, High Res Lens
    8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, High Res Lens
    8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    5.0 MP, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
    8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
    8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT


    型號

    HAWK MV-4000-03

    HAWK MV-4000-03C

    HAWK MV-4000-13

    HAWK MV-4000-13C

    HAWK MV-4000-20

    HAWK MV-4000-20C

    HAWK MV-4000-50

    HAWK MV-4000-50C


    傳感器

    品牌和型號

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    類型

    CMOS

    芯片尺寸

    1/4”-Type

    1/2”-Type

    2/3”-Type

    1”-Type

    格式

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    分辨率 (H x V)

    640 x 480

    1280 x 1024

    1920 x 1200

    2592 x 2048

    有效幀率

    最高 240 FPS

    最高 120 FPS

    最高 75 FPS

    最高 32 FPS

    最高 42 FPS

    最高 20 FPS

    最高 21 FPS

    最高8.5 FPS

    像素尺寸 (H x V)

    4.8 μm x 4.8 μm

    增益范圍

    0 至 19.4 dB

    快門速度

    50 μsec 至 4 sec

    觸發器響應

    外部觸發器輸出延遲 = 10μs。 抖動= 1 - 2μs。


    處理器，內存及存儲

    處理器

    雙核

    內存

    2GB RAM

    存儲

    32GB


    接口

    網絡

    千兆以太網

    HMI

    VGA 和 USB 2.0 (連接鍵盤和鼠標)

    數字 I/O

    3個光耦輸入（帶增量旋轉編碼器支持），1個專用光耦觸發，3個外部選通輸出

    其他

    Varioptic Caspian 自動對焦鏡頭專用接口


    機械，電氣，環保

    鏡頭類型

    C-Mount

    連接器

    M12 8針以太網插座; M12 12針插座，用于電源，數字I / O和LED照明強度控制; M12 12針插頭用于VGA和USB

    重量

    460 g

    能量消耗

    450 mA @ 24VDC 或 10.8W (一般情況)



    邁思肯Microscan HAWK MV-4000 智能相機附件表



    This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
    HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
    0.3 Megapixel Mono
    8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
    8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
    8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
    8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
    8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
    8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
    8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
    8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
    8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
    8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
    8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
    8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
    8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
    0.3 Megapixel Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
    8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
    8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
    8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
    8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
    8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
    8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
    8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
    8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
    8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
    8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
    8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
    8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
    HAWK MV-4000 Lenses and Lens Caps
    Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
    98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
    98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
    98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
    98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
    98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
    98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
    High Resolution for 2/3" Sensors (Gauging, Verification)
    98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
    98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
    98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
    98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
    98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
    98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
    High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
    98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
    98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
    98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
    98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
    C-Mount Liquid Lens
    98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
    98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
    Lens Accessories
    98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
    98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
    HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
    HAWK MV-4000 X-CODE Ethernet Port Cables
    61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
    61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
    61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
    HAWK MV-4000 VGA / USB Port Connector Cables
    61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
    61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
    HAWK MV-4000 Digital I/O Port Connector Cables
    61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
    61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
    QX-1 Interface Cables and Accessories
    61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
    61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
    98-000103-02QX-1 Interface Device
    99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
    99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
    20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    Smart Series Illuminator Control Cables
    61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
    61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
    61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
    61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
    Power Supply
    97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
    HAWK MV-4000 and Smart Series Illuminator Mount
    Standard Mount
    98-9000054-01APG Mount, HAWK MV-4000 (Requires Universal Mount)
    Smart Series Illuminator / HAWK MV-4000 Mounting Kits
    98-9000120-01Kit, Bracket, MAX 300 to HAWK MV-4000
    98-9000121-01Kit, Bracket, DOAL to HAWK MV-4000
    98-9000122-01Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
    98-9000123-01Kit, Bracket, Ring 100 to HAWK MV-4000
    98-9000137-01Kit, Smart Series Pharmalite, HAWK MV-4000
    Licensing
    HAWK MV-4000 License Upgrades
    LIC-0700-003*License, Machine Vision, AutoVISION
    LIC-0700-006*License, Machine Vision, Visionscape
    LIC-0700-009*License, Machine Vision,Verification / OCV
    LIC-0700-011*License, Machine Vision, AutoVISION Sensor
    LIC-0700-325*License, Machine Vision, Machine Vision Unlock
    Camera Kits with License, Lens, IP Cover, and Mount
    0.3 Megapixel, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8111-1160-0102HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    1.3 Megapixel, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
    8112-1250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
    1.3 Megapixel, High Resolution Lens
    8212-2160-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8212-2250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8212-2350-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Megapixel, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
    8113-1350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
    2.0 Megapixel, High Resolution Lens
    8213-2160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8213-2250-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8213-2350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8117-1160-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    8117-1350-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
    5.0 Megapixel, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
    8214-3250-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
    8214-3350-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount

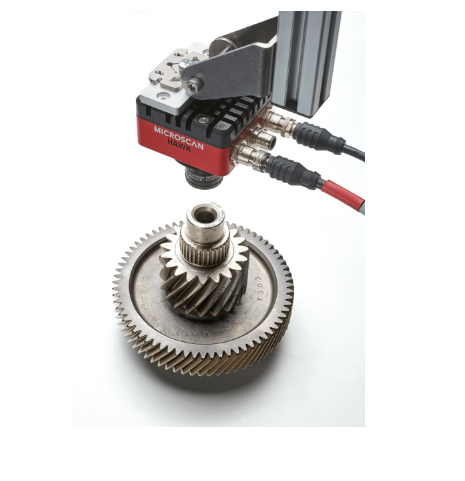

    邁思肯Microscan HAWK MV-4000 智能相機應用



    汽車零件，電子行業，制造行業，模具行業等

    相關產品

    相關文章

  • 工業讀碼器和工業相機的區別是什么？2021-02-03
    • 日本十八禁视频无遮挡| 欧美高清视频手机在在线| 蜜桃传媒在线观看免费版7| 欧美黑人巨大手机在线观看| 色欲AV久久一区二区三区久| 亚洲AV成人无码网站在线| 一本久道综合在线中文无码| Y1111111少妇影院| 国产AV成人无码精品网站| 含紧一点H边做边走动| 久久人人爽人人爽AV片| 青草伊人久久综在合线亚洲| 无码人妻AⅤ一区二区三区玉蒲团 无码人妻AⅤ一区二区三区用会员 | 巨爆乳无码视频在线观看| 欧洲熟妇色XXXXⅩ欧美老妇天| 透过校服的乳尖 揉捏| 亚洲日韩成人AV无码网站| 99亚洲精品卡2卡三卡4卡2卡| 夫妇交换性三中文字幕| 精品少妇爆乳无码AⅤ区| 女局长白白嫩嫩大屁股| 无码无套少妇毛多18PX| 一本一道波多野毛片结衣AV黑人 | 哦┅┅快┅┅用力啊┅警花少妇 | 国产高清自产拍AV在线| 久久人妻无码一区二区三区AV| 人妻精品久久一区二区av | 国产又粗又猛又爽又黄的视频在线| 久久婷婷综合色丁香五月| 日日摸夜夜爽无码毛片精选| 亚洲精品无码你懂的网站| 锕锕锕锕锕锕好污网站大全| 果冻传媒剧国产剧在线看| 欧美精品少妇XXXXⅩ另类| 亚洲 欧洲 日韩 综合二区 | 亚洲国产成人综合精品| 办公室的秘密2中文字幕| 黑人双人RAPPER的特点| 让少妇高潮无乱码高清在线观看| 亚洲AV永久无码精品无码少妇| 9色国产深夜内射| 国产我和子的与子乱视频| 欧美XXXX做受视频| 亚洲AV无码精品色午夜APP| SHOPIFY日本站5ZAWW| 极限少妇人妻无石久久电影网| 欧美精产国品一二三产品工艺| 亚洲AV免费高潮喷水| 爱情岛论坛自拍亚洲品质极速福利| 禁18在线观看免费网站| 入禽太深高清视频韩国| 一本一本大道香蕉久在线精品 | 精品日本久久久久久人妻日本| 日韩精品久久无码中文字幕| 伊人久久大香线蕉AV不卡| 国产精品国产精品偷麻豆| 欧美黑人疯狂性受XXXXX喷水| 亚洲国产成人AV网站| 东北老熟女对白XXXⅩHD| 麻豆AV字幕无码中文| 亚洲AV成人片无码网站网| 成 人 免费 黄 色 网站视频| 久久久久亚洲AV无码观看| 无码人妻一区二区三区兔费| 啊宝宝的扇贝真会夹C视频| 久久久亚洲欧洲日产无码AV| 吸咬奶头狂揉60分钟视频| 苍井空张开腿实干12次| 美女把腿扒开让我添视频 | 国内老熟妇对白HDXXXX| 日韩视频中文字幕精品偷拍| 中文字幕丝袜人妻制服丝袜在线| 好黄好污美女裸体网站| 少妇伦子伦情品无吗| AV无码免费岛国动作片片段欣赏 | 国产成人精品一区二区三区无码 | 无人区一码卡二卡三乱码 | 717午夜伦伦电影理论片| 精品一区二区三区免费毛片爱| 玩弄老太太的BBB| 边做边爱完整版MP3在线下载 | 精品乱码一区二区三区av| 无码H黄肉动漫在线观看999| 草莓视频APP下载| 欧美FREESEX黑人又粗又大| 夜夜精品浪潮AV一区二区三区| 国产在线精品成人一区二区三区| 睡美人免费观看完整版西瓜 | 精品国产三级A∨在线无码| 无码精品人妻一区二区三区老牛 | 精产国品一二三产区区別| 为什么放进去女的就老实了| 成人无码AⅤ在线播放| 欧美人伦禁忌DVD放荡欲情| 中文手机电影在线观看| 久久久精品久久久久久96| 亚洲AVT无码天堂网| 国产精品久久久久久久9999| 手机看片AV永久免费无| 成人国产精品一区二区网站免费 | 久久久亚洲AV成人网站| 亚洲精品一区二区丝袜图片| 国内老熟妇对白HDXXXX| 亚洲AV区无码字幕中文色| 国产精品丝袜高跟鞋| 天天躁恨恨躁夜躁2020| 国产69精品久久久久成人小说| 日韩精品无码观看视频免费| 爆裂点国语在线观看完整普通话| 欧亚精品一区三区免费| JIZZ在线观看中国少妇| 欧洲美熟女乱又伦AV影片| BGMBGMBGM老太太水太多| 欧美成人猛片AAAAAAA| 99精品久久99久久久久| 欧美成人区精品一区二区婷婷| 综合色一色综合久久网| 男生把QQ放进女生的QQ里韩剧| 18精品久久久无码午夜福利| 免费观看电视在线高清| 中文字幕久久久久久精品| 免费夜色污私人影院在线观看| 做I爱直播APP| 欧美黑人一区二区| А√天堂中文最新版在线下载种子 | 少妇特黄A一区二区三区| 国产99久久久国产精品成人小说| 双乳被一左一右的吸着| 国产精华精华液一二三区别| 小SAO货边洗澡边CAO你| 黑人上司粗大拔不出来电影| 亚洲色18禁成人网站WWW| 久久亚洲AV永久无码精品| 中文成人久久久久影院免费观看| 男j插女p无遮挡100%| AV中文字幕潮喷人妻系列| 日本爆乳丰满熟妇XXXX| 工口全彩H肉无遮挡无翼乌| 无码熟熟妇丰满人妻啪啪软件| 国产一国产二国产三国产四国产五| 亚洲AV最新天堂网址| 久久精品国产免费播高清无卡| 又大又硬又粗再深一点| 欧美成妇人吹潮在线播放| 被部长灌醉后强行侵犯| 天天影视色香欲综合久久| 国产熟女一区二区三区四区五区| 亚洲AV中文无码乱人伦| 久久久久久精品免费免费麻辣| 中文字幕亚洲无线码在线一区| 欧洲多毛裸体XXXXX| 公的粗大挺进了我的密道视频| 午夜夫妻试看120国产| 精品综合久久久久久8888| 中文字幕无码免费久久9一区9| 秋霞午夜无码鲁丝片午夜| 父债子偿BY画崖海棠| 学生妹亚洲一区二区| 久久久久久久精品妇女99| av 无码av 丰满av| 四虎永久在线精品无码视频| 好男人在线观看无遮挡版| 再深点灬舒服灬太大了添A| 人妻丰满熟妇av无码区HD优| 国产成人欧美一区二区三区| 亚洲精品国产情侣AV在线| 男朋友一晚弄了我5次正常吗| 粗大的内捧猛烈进出视频| 亚洲AV无码成人精品区| 乱人伦中文无码视频在线观看| 把女的下面扒开添视频| 性生交片免费无码看人| 久久亚洲中文字幕伊人久久大| ZOOM与人性ZOOM| 无遮挡啪啪摇乳动态图GIF| 久久久久久A亚洲欧洲AV| Www内射熟妇COm| 无遮高潮国产免费观看| 看久久久久久A级毛片| 成年网站未满十八禁在线观看| 亚洲AV成人精品日韩一区18p | 中国高清WINDOWS视频软件| 日日摸日日碰夜夜爽亚洲| 精品久久人人做人人爽综合| JAPANESE娇小侵犯| 性刺激性色爽爱小说| 男男H黄动漫啪啪无遮挡网站| 国产VA免费精品高清在线观看| 亚洲色婷婷综合开心网| 人妻系列无码专区无码中出| 国精产品一线二线三线| av 成人 亚洲无码| 亚洲AV乱码久久精品密桃| 男女后进式猛烈XX00动态图片 | 无码精品A∨在线观看| 老熟女@TUBEUMTV| 国产高潮视频在线观看| 中文字幕AV一区中文字幕天堂 | 人妻中文字幕制服丝袜| 精品久久人人爽人人玩人人妻 |
